Difficult-Powder Handling
Matched auger tooling and agitation support dusty, fine and difficult-flowing powders.
Warranty & ownership support ↗
Final configuration is confirmed against your product and pack.
Powder filling
Servo Powder Filling Machine
Servo Auger Powder FillerML-AF-SV-01Servo-auger dosing for fine, dusty and difficult-flowing powders.
- Fill range
- 1 g–10 kg*
- Output
- Up to 130 doses/min*
- Accuracy
- ±0.5%*
Product review · Trial validation · Installation & training
Your product, your pack
Made for the application.
- Spices & Food Powders
- Beverage & Dairy Powders
- Nutrition & Nutraceutical Powders
- Agrochemical & Fertilizer Powders
- Detergent & Specialty-Chemical Powders
- Cosmetic, Herbal & Pharma Powders*
Applications marked * need individual product review.
Servo Filling Repeatability
Servo auger control and stable feeding support consistent powder doses.
Hygienic, Seal-Protected Design
Product/drive separation and sense-and-seal detection improve hygiene and reduce interruptions.
The details that matter
Know your machine.
Standalone module specifications
| Model | ML-AF-SV-01 |
|---|---|
| Machine Type | Servo auger powder filler |
| Operation / Automation | Automatic servo-controlled dosing module |
| Operating Principle | Auger dosing with product agitation |
| Drive / Motion System | Servo-motor auger drive |
| Fill Range | 1 g–10 kg*; auger/tooling and product dependent |
| Output | Up to 130 doses/min* |
| Filling Accuracy | ±0.5%* |
| Controls / HMI | PLC with 7-inch touchscreen HMI |
| Body / Frame Construction | SS304 / SS316 available as configured |
| Product-Contact Material | SS304 / SS316 available as required by product |
| Voltage / Electrical Supply | 220/440V |
| Auger / Tooling Configuration | Auger/tooling selected for target weight, speed and product flow |
| Hopper / Agitation | Hopper, agitator and refill arrangement selected for product behaviour |
| Dust-Control Arrangement | Dust-control arrangement confirmed in final configuration |
| Warranty / Origin | 1 Year; Made in India |

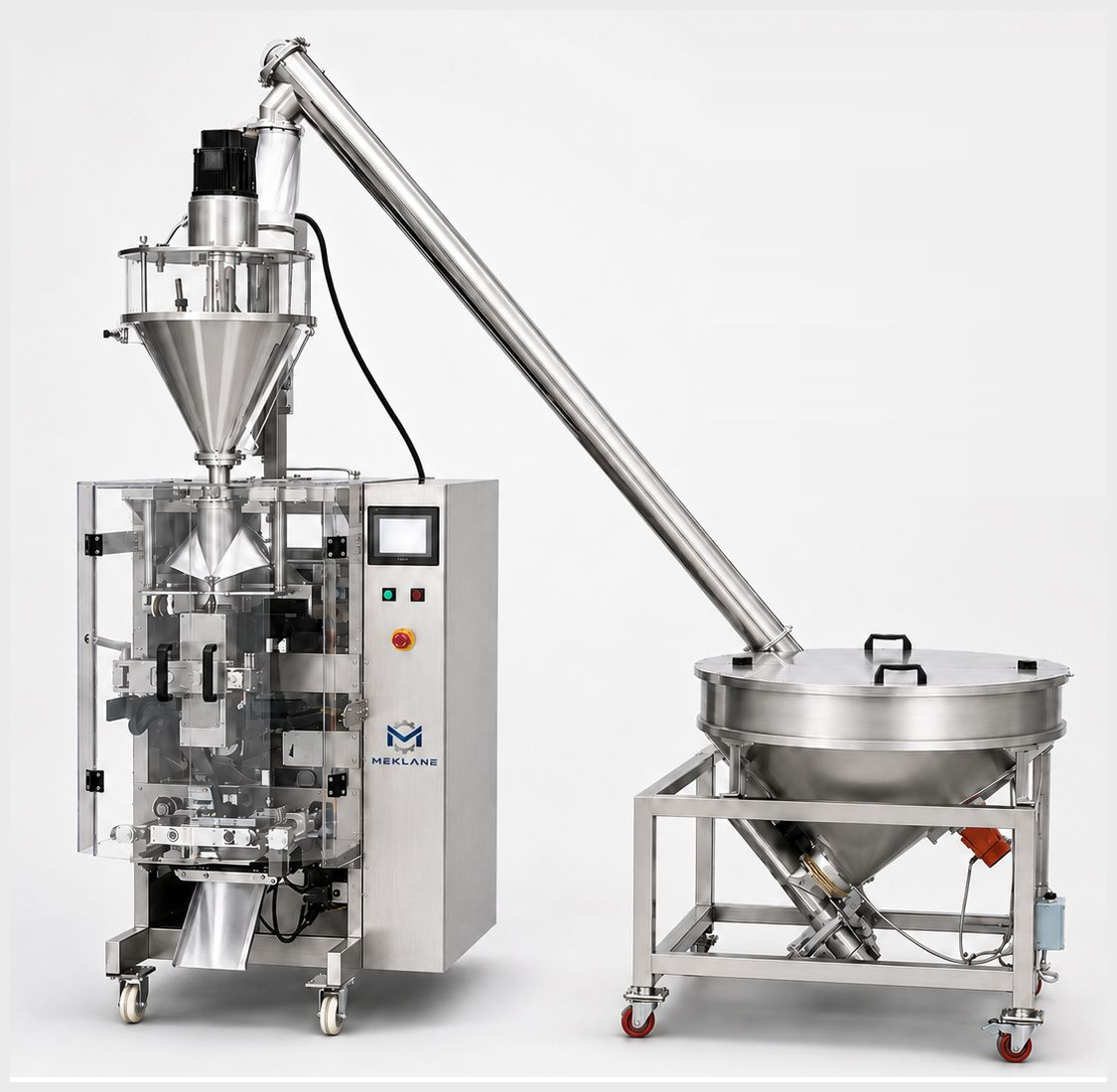

Complete pouch-packing configuration — when vffs is included
| Integrated System Platforms | Standard up to 1 kg*; XL up to 10 kg* |
|---|---|
| Pouch Changeover | Replaceable forming assemblies for different pouch widths |
| Film / Registration | Dual-motor film pull; Datalogic print registration |
| Sealing / Detection | Pneumatic sealing; sense-and-seal product detection |
| Hygiene / Access | Product/drive separation; enclosed packing; open-frame service access |
| Controls / Pneumatics | Mitsubishi PLC; SMC components, where applicable |
| System Contact Parts | SS304 product-contact parts, where applicable |
| Complete-System Scope | Servo auger + VFFS + forming set + sealing/cutting + discharge |
*Performance depends on product characteristics, target quantity, machine configuration and operating conditions. Standalone dosing rates and complete-system pouch rates apply to their respective configurations. Final values and utilities are confirmed in the approved technical offer.
Support through machine ownership.
Explore ownership supportMachine Passport™
Your machine’s identity, configuration and service history in one place.
Explore the PassportMachine Health Card™
A 100-point technical assessment, with condition notes and recommended actions.
See how assessment worksMachine Care
Preventive maintenance, priority technical support and operator guidance in one AMC programme.
Discuss Machine CareMachine-specific records and optional AMC support follow the agreed configuration and service scope.
Keep exploring
Other machines to consider.
Standalone unit
Linear Weighing Machine
ML-LW-01Load-cell weighing for free-flowing granules and piece products with configurable head setup.
- Weight range
- 50 g–5 kg*
- Output
- Up to 40 doses/min*
Pouch machine
Servo Pouch Packing Machine
ML-VFFS-IM-SVAvailable in 3 platform sizes: Compact (1 g–200 g), Standard (1 g–1 kg) and Large-Capacity (1 g–10 kg).
Pair with a compatible filler or weigher.
- Platforms
- 1 g–200 g / 1 kg / 10 kg*
- Output
- Up to 120 pouches/min*
Let’s find your machine
Talk to Meklane A good fit starts with a conversation.
Tell us your product, pack size and required output.
